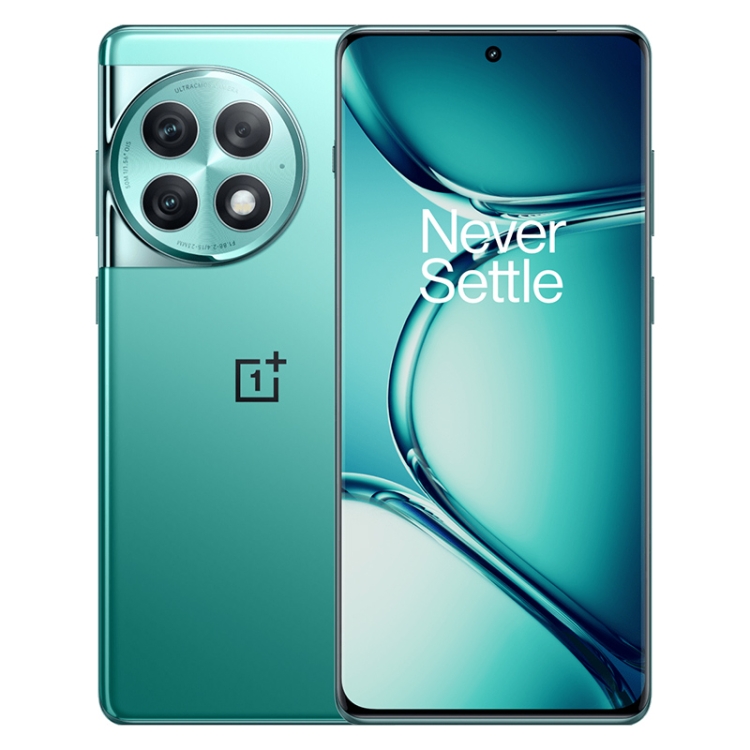

OnePlus Ace 2 Pro 5G, 12GB+256GB

Description

Processing Platform:
1. CPU frequency: Main frequency up to 3.2GHz (1 super large core + 4 large cores + 3 small cores)
2. Processing platform: Qualcomm Snapdragon 8 Gen2
3. Number of CPU cores: Octa-core processing architecture
4. GPU: Adreno 740 680MHz

Data Function:
1. WLAN function:
– Supports Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), 802.11a/b/g/N/; WLAN 2.4G/WLAN 5.1G/WLAN 5.8G ;
– Support WLAN Display; WLAN network sharing;
– Support network overlay: Wi-Fi 2.4GHz 2×2 + Wi-Fi 5GHz 2×2 concurrently;
– Support Wi-Fi 5GHz 160MHz;
– Support 2×2 MIMO; 8 Spatial-stream sounding MU-MIMO
2. Transmission protocol: USB 2.0
3. Bluetooth audio specifications: Support SBC, AAC, support aptX HD, LDAC, aptX, LHDC
4. Data interface: Type-C
5. Headphone jack: Support standard Type-C headphones
6. NFC: Multifunctional NFC

memory and capacity
1. RAM specification: LPDDR5x 4266MHz 4×16bit
2. ROM specification: UFS4.0
3. Capacity: 12GB+256GB/16GB+256GB/16GB+512GB optional
4. Expansion card: Not supported

Cameras:
1. Rear camera
– Main camera 50MP: f/1.8; FOV 84.2 degrees; 6P lens; supports AF; uses open-loop focus motor, supports OIS.
– Wide-angle 8MP: f/2.2; FOV 112 degrees; 5P lens.
– Macro 2MP: f/2.4; FOV 88.8 degrees; 3P lens.
2. Front camera
– Front 16MP: f/2.4; FOV 82.3 degrees; 5P lens.
3. Rear shooting modes: photo, video, night scene, professional, panorama, portrait, time-lapse photography, slow motion, super text, tilt-shift, cute shot, movie, macro, long exposure, AI ID photo, multi-view video
4. Front shooting modes: photo, video, panorama, portrait, night scene, time-lapse photography, beauty selfie, screen fill light, AI ID photo, cute shot
5. Video capture: Support 4K 60fps/30fps (rear); 1080P/720P 30fps (front)

Battery and Charging:
1. Battery capacity: 5000mAh
2. Fast charging: 150W, SuperVOOC, SuperVOOC 2.0, VOOC 3.0, PD2.0 9V2A, QC2.0 9V2A, UFCS 11V 3A
3. Charging interface: Type-C interface

Display:
1. Screen: 6.74-inch 3D AMOLED curved screen, 1240 x 2772 resolution, 450 PPI pixel density; 120Hz refresh rate
2. Screen ratio: 93.90%
3. Brightness: 550nit~1600nit
4. Touch sampling rate 125Hz~360Hz
5. Color Gamut: Vivid Mode DCI-P3; Natural Mode RGB
6. Color: 1.07 billion colors (8+2 bit)
7. Functions: 1440Hz high-frequency PWM dimming, eye protection mode, screen color mode, automatic brightness adjustment, manual brightness adjustment, screen color temperature adjustment, ultra-clear image quality enhancement, video color enhancement, HDR video highlight mode, dark mode, Screen refresh rate switching

Dimensions and Weight:
1. Dimensions: 163.12 x 74.20 x 8.98mm
2. Weight: About 210g

Cellular Network:
1. Dual card: Support
2. SIM card type: Nano-SIM card
3. Network frequency band:
– 5G NR: N1/N3/N5/N8/N28A/N41/N77/N78
– 4G LTE FDD: B1/B3/B4/B5/B7/B8/B18/B19/B26/B28A; LTE TDD: B34/B38/B39/B40/B41
– WCDMA: B1/B4/B5/B8
– GSM:850/900/1800/1900MHz

Others:
1. Fingerprint unlock: In-screen fingerprint
2. Facial recognition: Support
3. Sensors: Geomagnetic, under-screen proximity sensor, light sensor, under-screen light sensor, acceleration sensor, gravity sensor, gyroscope, support step counting function
4. Positioning function: Beidou: B1I+B1C+B2a; GPS: L1+L5; GLONASS: G1; Galileo: E1+E5a; QZSS: L1+L5; support AGPS assisted positioning, support wireless LAN, cellular network positioning

Packing List:
1. Phone x 1
2. Card pin x 1
3. Protective case x 1
4. USB cable x 1
5. US charging adapter x 1
6. Pre-applied protective film x 1
(The actual object shall prevail)
